Buttons
| Back | Buttons | History | Description | Schematics | Performance | Pictures |

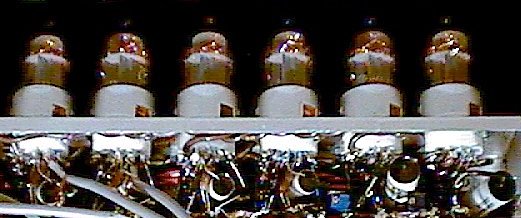

A 12AU7 line stage preamplifier/selector.
Specifications
- Preamp Circuit Type: single-ended, class A, "mu-follower"
- EQ Driver Circuit Type: single-ended, class A, "cathode-follower"
- Input Impedance: 100Kohms
- Output Impedence: preamp: ?, driver: ?
- Tubes: 6 x 12AU7
- Power Consumption: ?W
