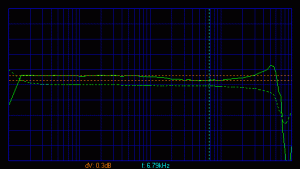

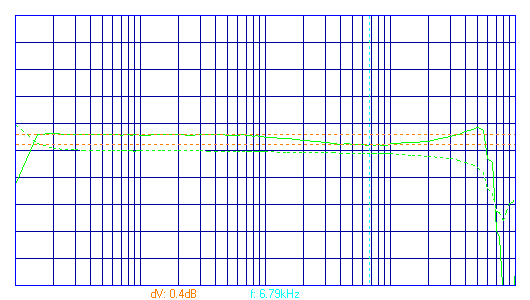

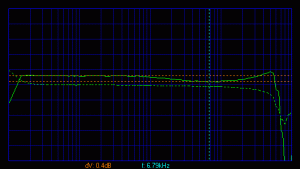

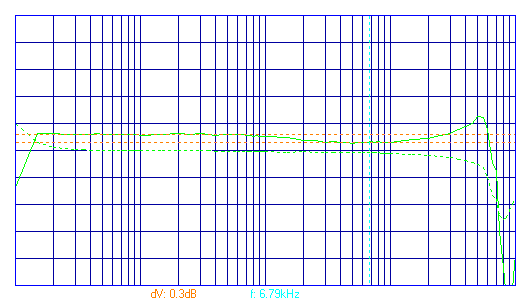

Below you can see the Bode plots for the left and right channels with the amp running at 2.0Vrms at the inputs (about 85% full output). The solid green line is the output response in dB and the dotted green line is the phaseObviously, a low pass filter would be a good idea to roll-off the response above 20kHz and eliminate the peak around 50kHz. I haven't probed more closely to isolate the dip around 6.8kHz, but I suspect it has something to do with the feedback circuit. I was suprised at the good low level response, given the physical size of the output transformers. Again, this is probably due, at least in part, to the global negative feedback.
